PDLUX PD-V21360 Sensor Beralih Sensor 24.125GHz Radar MV Detector HF Doppler Emitter Supplier MicMis ISM - Band K- Band

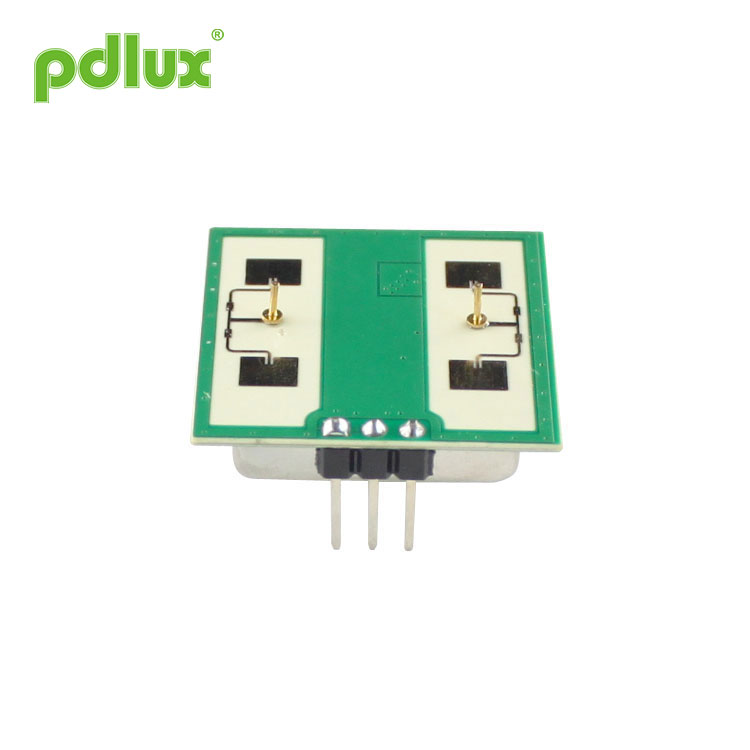

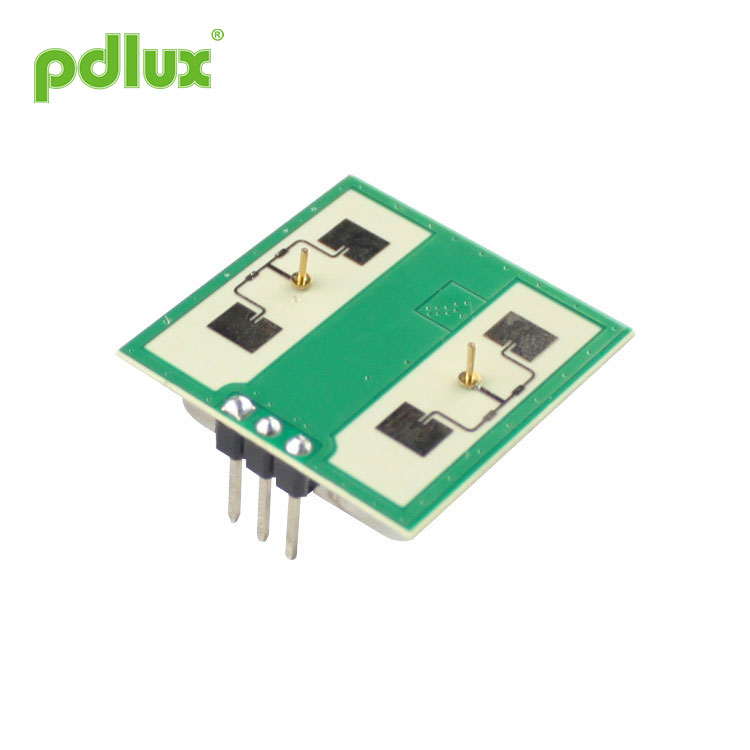

PDLUX PD-V21360 Sensor Sensor Switch 24.125GHz Radar MV Detector HF Doppler Emitter Supplier Microwave ISM - Band K- Band minangka modlue transceiver transceiver K-Band Bi-Static Doppler. Modul Resonator Oscillator (CRO) internal iki. Modul iki , V21360 nggunakake Antena Plane sing rata, cocog kanggo dipasang ing tembok. Iki bisa ningkatake kemampuan nampa sinyal ngarep lan nyuda area buta ing sisih mburi. Prestasine luwih apik tinimbang sensor ing pasar.
Model:PDLUX PD-V21360
Kirim Pitakonan
PDLUX PD-V21360 Sensor Beralih Sensor 24.125GHz Radar MV Detector HF Doppler Emitter Supplier MicMis ISM - Band K- Band
 |
Application of PDLUX PD-V21360 Sensor Beralih Sensor 24.125GHz Radar MV Detector HF Doppler Emitter Supplier MicMis ISM - Band K- Band â— Saklar sing cerdas â— Saklar sing dipasang ing tembok â— Pendeteksi penyusup PDLUX PD-V21360 Sensor Beralih Sensor 24.125GHz Radar MV Detector HF Doppler Emitter Supplier MicMis ISM - Band K- Band is a K-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module,V21360 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market. Modul iki cocog kanggo sensor hunian kanthi otomatis kanthi otomatis. Sampeyan uga bisa digunakake kanggo detektor penyusup sing dipasang ing plafon. Miturut EN 300440-V2.1.1ã € EN 62479：2010, arahan RED-2014/53 / EU Miturut FCC Part 15.249 Miturut EN 62321, arahan ROHS - 2011/65 / EU Miturut arahan REACH - 1907/2006 / EC |
|
Parameter |
Cathetan |
Min |
Jinis |
Maks |
Unit |
|
Tegangan Pasokan |
Vcc |
3.0 |
5.0 |
5.25 |
V |
|
Konsumsi Saiki |
Icc |
20 |
35 |
38 |
mA |
|
Mode Operasi |
Didhukung dening PWM, bisa ngontrol arus kerja ing 3-15mA |
||||
|
Jembar Pulsa |
Tpulse |
10 |
S |
||
|
Suhu Operasi |
Ndhuwur |
-30~+85+100（Maks.） |
℃ |
||
|
Suhu Panyimpenan |
Tstg |
-10 |
+60 |
℃ |
|
|
Wektu Stabil |
|
<5 |
Sec |
||
|
Nyetel Frekuensi |
f |
24.000 |
24.125 |
24.250 |
GHz |
|
Daya Radiasi (EIRP) |
Pout |
<2.0 |
<2.5 |
<3.0 |
mW |
|
Kelembapan sekitar Kalor |
45% ~ 65% |
RH |
|||
Note1: Emisi radiasi dirancang kanggo memenuhi aturan FCC lan CE.
Cathetan2: Kekuwatan Sinyal sing Ditampa (RSS) diukur kanthi total 1 Cara ilang jalur 70dB.
Note3: Tegangan swara diukur saka 10Hz nganti 100Hz ing port Output, ing njero ruangan Anechoic.
Note4: Operasi pulsa
