PDLUX PD-V12 Smart Home 24.125GHz Modul Sensor Radar Gelombang Mikro Modul Doppler Sensor

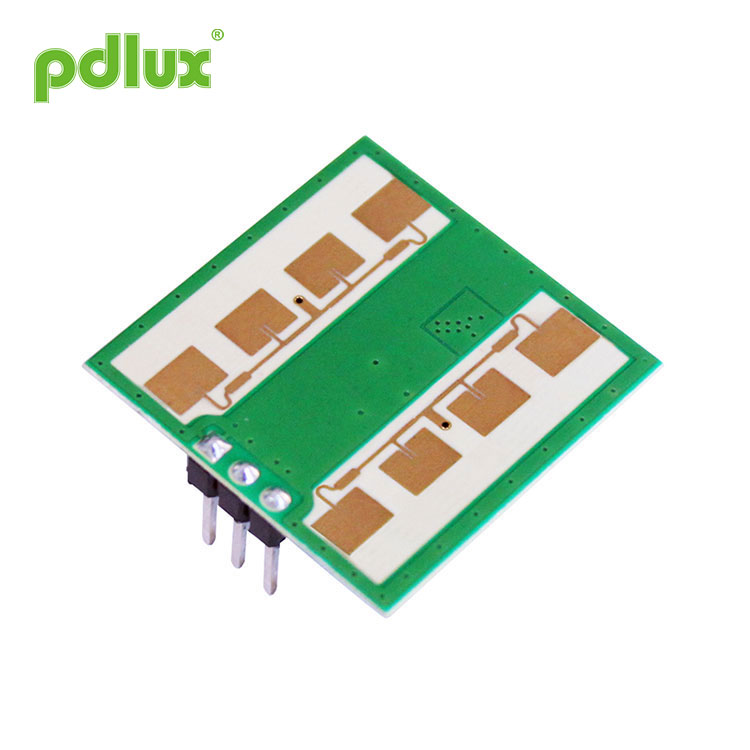

PDLUX PD-V12 Smart Home 24.125GHz Modul Sensor Radar Gelombang Mikro Modul Doppler Sensor minangka modlue transceiver K-Band Bi-Static Doppler. Iki wis dibangun ing Resonator Oscillator (CRO). Modul iki, PD-V12 nggunakake Antena Plane sing rata, cocog kanggo dipasang ing tembok. Iki bisa ningkatake kemampuan nampa sinyal ngarep lan nyuda area buta ing sisih mburi. Prestasine luwih apik tinimbang sensor ing pasar.
Model:PDLUX PD-V12
Kirim Pitakonan
PDLUX PD-V12 Smart Home 24.125GHz Modul Sensor Radar Gelombang Mikro Modul Doppler Sensor
 |
Application of PDLUX PD-V12 Smart Home 24.125GHz Modul Sensor Radar Gelombang Mikro Modul Doppler Sensor â— Saklar sing cerdas â— Saklar sing dipasang ing tembok â— Pendeteksi penyusup PDLUX PD-V12 Smart Home 24.125GHz Modul Sensor Radar Gelombang Mikro Modul Doppler Sensor is a K-Band Bi-Static Doppler transceiver modlue. It’s built-in Resonator Oscillator (CRO).This module, PD-V12 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market. Modul iki cocog kanggo sensor hunian kanthi otomatis kanthi otomatis. Sampeyan uga bisa digunakake kanggo detektor penyusup sing dipasang ing plafon. Miturut EN 300440-V2.1.1ã € EN 62479：2010, arahan RED-2014/53 / EU Miturut FCC Part 15.249 Miturut EN 62321, arahan ROHS - 2011/65 / EU Miturut arahan REACH - 1907/2006 / EC |
|
Parameter |
Cathetan |
Min |
Jinis |
Maks |
Unit |
|
Tegangan Pasokan |
Vcc |
3.0 |
5.0 |
5.25 |
V |
|
Konsumsi Saiki |
Icc |
20 |
35 |
38 |
mA |
|
Mode Operasi |
Didhukung dening PWM, bisa ngontrol arus kerja ing 3-15mA |
||||
|
Jembar Pulsa |
Tpulse |
10 |
S |
||
|
Suhu Operasi |
Ndhuwur |
-30~+85+100（Maks.） |
℃ |
||
|
Suhu Panyimpenan |
Tstg |
-10 |
+60 |
℃ |
|
|
Wektu Stabil |
|
<5 |
Sec |
||
|
Nyetel Frekuensi |
f |
24.000 |
24.125 |
24.250 |
GHz |
|
Daya Radiasi (EIRP) |
Pout |
<2.0 |
<2.5 |
<3.0 |
mW |
|
Kelembapan sekitar Kalor |
45% ~ 65% |
RH |
|||
PARNGET: Jangkauan deteksi nyata ana gandhengane karo panguatan sinyal saka sirkuit, tata letak PCBA lan ambang MCU.
Note1: Emisi radiasi dirancang kanggo memenuhi aturan FCC lan CE.
Cathetan2: Kekuwatan Sinyal sing Ditampa (RSS) diukur kanthi total 1 Cara ilang jalur 70dB.
Note3: Tegangan swara diukur saka 10Hz nganti 100Hz ing port Output, ing njero ruangan Anechoic.
Note4: Operasi pulsa
