OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324

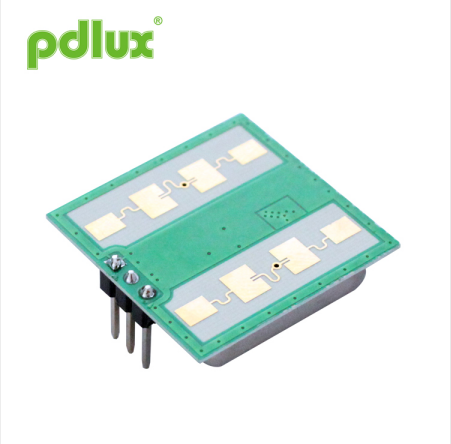

OEM / ODM 24.125 GHz Microwave Doppler Sensor CDM324 punika K-Band Bi-Static Doppler transceiver modul .Iku dibangun ing Resonator Oscillator (CRO).Modul iki, V11 adopts flat Plane Antena, cocok kanggo tembok soyo tambah. Bisa nambah kemampuan nampa sinyal ngarep lan nyuda area wuta flank. Kinerja luwih apik tinimbang sensor ing pasar.
Model:PD-V11
Kirim Pitakonan
OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324
 |
Aplikasi OEM/ODM 24.125 GHz Microwave Doppler Sensor CDM324
OEM / ODM 24.125 GHz Microwave Doppler Sensor CDM324 punika K-Band Bi-Static Doppler transceiver modul .Iku dibangun ing Resonator Oscillator (CRO).Modul iki, V11 adopts flat Plane Antena, cocok kanggo tembok soyo tambah. Bisa nambah kemampuan nampa sinyal ngarep lan nyuda area wuta flank. Kinerja luwih apik tinimbang sensor ing pasar. Modul iki saenipun cocog kanggo sensor pendhudhukan ing switching lampu otomatis. Sampeyan uga bisa digunakake kanggo detektor intruder dipasang ing langit-langit. Miturut EN 300440-V2.1.1, EN 62479:2010, RED Directive-2014/53/eu Miturut FCC Part 15.249 Miturut EN 62321, arahan ROHS-2011/65/eu Miturut arahan REACH-1907/2006/ec |
|
Paramèter |
Cathetan |
Min |
Tipe |
Maks |
Unit |
|
Setelan Frekuensi |
1 |
24.050 |
24.125 |
24.250 |
GHz |
|
Daya Radiasi (EIRP) |
1 |
2.0 |
2.5 |
3.0 |
mW |
|
Wektu Mapan |
|
5 |
10 |
20 |
μSek |
|
Ditampa Kekuatan Sinyal |
2 |
150 |
200 |
250 |
μVp-p |
|
rame |
3 |
4.0 |
4.5 |
5.0 |
mVrms |
|
Tegangan Pasokan |
|
4.75 |
5.0 |
5.25 |
VDC |
|
VCO |
|
0.5 |
|
2 |
V |
|
Konsumsi Saiki |
|
25 |
35 |
45 |
mA |
|
Frekuensi Ambalan Pulsa |
4 |
1.8 |
2.0 |
3.0 |
KHz |
|
Lebar Pulsa |
4 |
10 |
20 |
30 |
μSek |
|
Suhu operasi |
|
-20 |
25 |
60 |
℃ |
|
Bobot |
|
3.7 |
4.1 |
4.5 |
g |
Cathetan 1: Emisi sing dipancarake dirancang kanggo nyukupi aturan FCC.
Cathetan2: Kekuwatan Sinyal sing Ditampa (RSS) diukur kanthi total 1 Ways path loss 70dB.
Cathetan 3: Tegangan swara diukur saka 10Hz nganti 100Hz ing port Output, ing njero ruangan Anechoic.
Cathetan 4: Operasi pulsa
