PDLUX PD-V6 Saklar Lampu Otomatis Modul Detektor Radar Sensor 5.8GHz

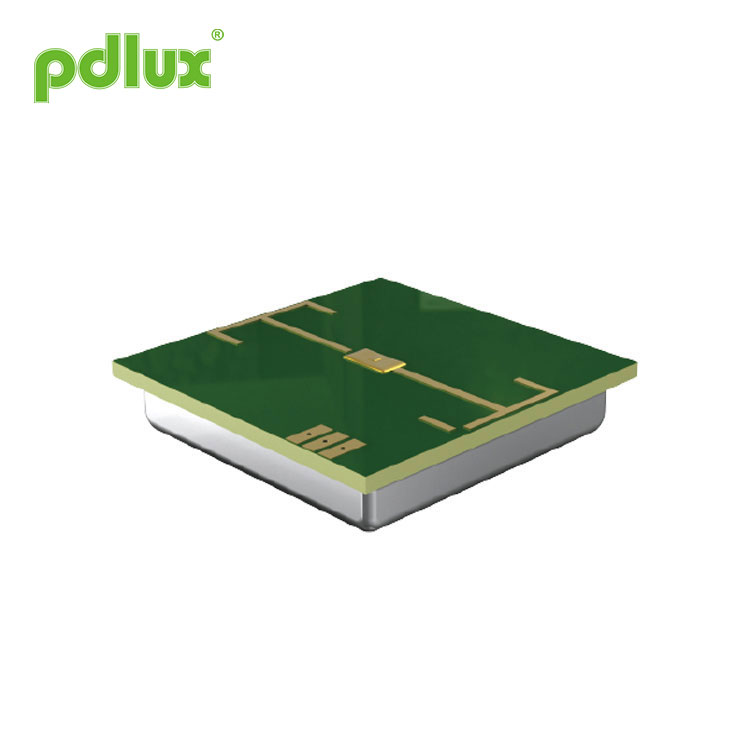

PDLUX PD-V6 Saklar Lampu Otomatis Modul Detektor Radar Sensor Gerak 5.8GHz minangka modlue transceiver C-Band Bi-Static Doppler. Modul Resonator Oscillator (CRO) internal. Modul iki nggunakake sirkuit ampli internal lan langsung ngasilake sinyal amplifikasi, V6 nggunakake Antena Plane datar, cocog kanggo dipasang ing tembok. Iki bisa ningkatake kemampuan nampa sinyal ngarep lan nyuda area buta ing sisih mburi. Prestasine luwih apik tinimbang sensor ing pasar.
Model:PDLUX PD-V6
Kirim Pitakonan
PDLUX PD-V6 Saklar Lampu Otomatis Modul Detektor Radar Sensor 5.8GHz
 |
Application of PDLUX PD-V6 Saklar Lampu Otomatis Modul Detektor Radar Sensor 5.8GHz â— Saklar sing cerdas â— Saklar sing dipasang ing tembok â— Lampu otomatis â— Pendeteksi penyusup Fitur lan kauntungan â— Volume cilik â— Output daya nirkabel sithik â - Konsumsi daya sithik â— Deteksi non-kontak â— Gampang kanggo nyambung karo kontroler â— Output swara sithik PDLUX PD-V6 Saklar Lampu Otomatis Modul Detektor Radar Sensor 5.8GHz is a C-Band Bi-Static Doppler transceiver modlue .It’s built-in Resonator Oscillator (CRO).This module，which uses the built-in amplifier circuit and directly outputs amplification signal, V6 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market. Modul iki cocog kanggo sensor hunian kanthi otomatis kanthi otomatis. Sampeyan uga bisa digunakake kanggo detektor penyusup sing dipasang ing plafon. Miturut EN 300440-V2.1.1ã € EN 62479：2010, arahan RED-2014/53 / eu Miturut FCC Part 15.249 Miturut EN 62321, arahan ROHS-2011/65 / eu Miturut arahan REACH-1907/2006 / ec |
|
Parameter |
Cathetan |
Min |
Jinis |
Maks |
Unit |
|
Nyetel Frekuensi |
1 |
5.75 |
5.80 |
5.85 |
GHz |
|
Daya Radiasi (EIRP) |
1 |
0.10 |
0.12 |
0.15 |
mW |
|
Ngatur wektu |
|
5 |
|
10 |
mS |
|
Nampa Kekuwatan Sinyal |
2 |
100 |
150 |
200 |
Vp-p |
|
Ribut |
3 |
80 |
150 |
180 |
mVrms |
|
Tegangan Pasokan |
|
4.75 |
5.00 |
5.25 |
VDC |
|
Konsumsi Saiki |
|
18 |
20 |
23 |
mA |
|
Frekuensi Ambalan Pulsa |
4 |
2.0 |
2.2 |
3.0 |
KHz |
|
Jembar Pulsa |
4 |
15 |
50 |
70 |
Sec |
|
Suhu Operasi |
|
-15 |
22 |
75 |
℃ |
|
Bobot |
|
9.5 |
10 |
10.5 |
g |
Note1: Emisi radiasi dirancang kanggo memenuhi aturan FCC.
Note2:The Nampa Kekuwatan Sinyal(RSS) is measured at the total 1 Ways path loss of 70dB.
Note3: Tegangan swara diukur saka 10Hz nganti 100Hz ing port Output, ing njero ruangan Anechoic.
Note4: Operasi pulsa
