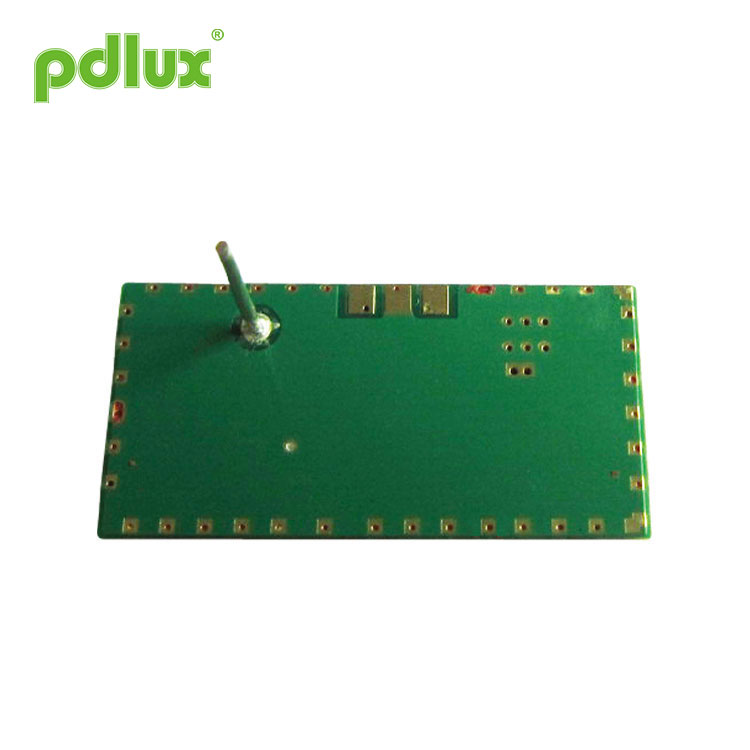

PDLUX PD-V4 Microne Emitter Factory HF Sensor Doppler Motion Detector Module
PDLUX PD-V4 Microne Emitter Factory HF Sensor Doppler Motion Detector Module minangka modlue transceiver transceiver C-Band Bi-Static Doppler. Iki nggunakake sirkuit eksternal sinyal amplifikasi. Konfigurasi listrik sing luwih sensitif lan luwih murah tinimbang V2. Wis gampang kanggo para pelanggan nggawe macem-macem produk.
Model:PDLUX PD-V4
Kirim Pitakonan
PDLUX PD-V4 Microne Emitter Factory HF Sensor Doppler Motion Detector Module
 |
Application of PDLUX PD-V4 Microne Emitter Factory HF Sensor Doppler Motion Detector Module â— Saklar sing cerdas â— Lampu otomatis â— Pendeteksi penyusup Fitur lan kauntungan â— Output daya nirkabel sithik â - Konsumsi daya sithik â— Deteksi non-kontak â— Gampang cocog karo sirkuit eksternal â Kemampuan anti-macet sing dhuwur â— Cocog karo macem-macem lingkungan sing angel â— Output swara sithik PDLUX PD-V4 Microne Emitter Factory HF Sensor Doppler Motion Detector Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit.More sensitive and lower power consumption than V2. It is convenient for the customers to develop various products. Modul iki cocog kanggo sensor hunian kanthi otomatis kanthi otomatis. Sampeyan uga bisa digunakake kanggo detektor penyusup sing dipasang ing plafon. Miturut EN 300440-V2.1.1ã € EN 62479：2010, arahan RED-2014/53 / eu Miturut FCC Part 15.249 Miturut EN 62321, arahan ROHS-2011/65 / eu Miturut arahan REACH-1907/2006 / ec |
|
Parameter |
Cathetan |
Min |
Jinis |
Maks |
Unit |
|
Nyetel Frekuensi |
1 |
5.75 |
5.80 |
5.85 |
GHz |
|
Daya Radiasi (EIRP) |
1 |
0.18 |
0.20 |
0.22 |
mW |
|
Ngatur wektu |
|
5 |
10 |
20 |
Sec |
|
Nampa Kekuwatan Sinyal |
2 |
150 |
200 |
300 |
Vp-p |
|
Ribut |
3 |
0.5 |
|
2 |
mVrms |
|
Tegangan Pasokan |
|
4.75 |
5.00 |
5.25 |
VDC |
|
Konsumsi Saiki |
|
12 |
12.5 |
13.5 |
mA |
|
Frekuensi Ambalan Pulsa |
4 |
2.0 |
2.2 |
3.0 |
KHz |
|
Jembar Pulsa |
4 |
15 |
50 |
70 |
Sec |
|
Suhu Operasi |
|
-15 |
22 |
90 |
℃ |
|
Bobot |
|
4.5 |
4.8 |
5.3 |
g |
Note1: Emisi radiasi dirancang kanggo memenuhi aturan FCC.
Note2:The Nampa Kekuwatan Sinyal(RSS) is measured at the total 1 Ways path loss of 64dB.
Note3: Tegangan swara diukur saka 10Hz nganti 100Hz ing port Output, ing njero ruangan Anechoic.
Note4: Operasi pulsa
