PDLUX PD-P08KT Light Light Light Sensor Switch
Pdlux PD-P08KT Timer Sensor Timer Sensor minangka produk Optik CNC Advanced sing bisa diuripake kanthi otomatis miturut lampu ambient. Setel wektu mati miturut wektu sing beda karo pemandangan, kayata. Nguripake lampu ing wayah wengi. Wektu sing disetel wiwit wiwitan wektu, lan pangguna bisa nyetel otomatis 2-jam, 4-jam otomatis mati, 8-jam kanthi otomatis lampu (I.E., mode lampu sing paling murah wis diuripake) miturut kabutuhan wektu. Sajrone tes awan, perlu kanggo nyelehake kanthong plastik ireng ing cangkang kanggo nutupi cahya ing wayah wengi, saengga produk bisa mlebu ing mode wiwitan wengi, sawise miwiti, Timer bakal miwiti ngetung miturut wektu sing wis ditemtokake. Yen sampeyan kudu ngilangi kendhali sing bisa dikendhaleni, sampeyan mung kudu muter potentiometer kabeh nganti pungkasan, lan ngalih cahya kanthi otomatis bisa ngilangi suhu wengi, sing ora mung trep nanging uga praktis. Gampang diinstal lan duwe macem-macem panggunaan. CATETAN: Ngalihake lampu kendali lumahing kanthi dawa digital: Urip layanan luwih saka 5 taun.
Model:PD-P08KT
Kirim Pitakonan

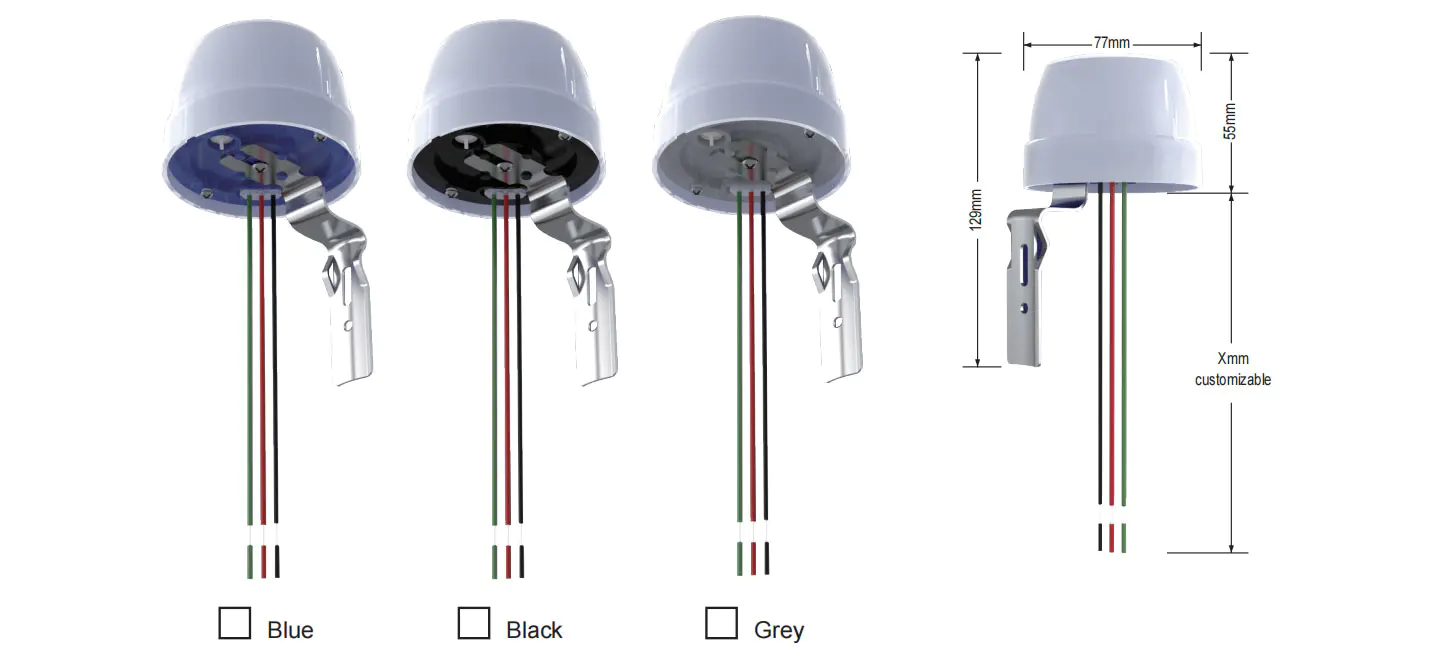

PD-P08KT light-controlled timing switch
Specifications
|
Power Source |
220-240VAC/100-130VAC |
|
Time setting |
2h/4h/8h/Automatic switch (optional) |
|
Rated Current |
20A |
|
Power frequently |
50/60Hz |
|
Power consumption |
<0.5W |
|
Light-control: |
10LUX（5-15LUX） |

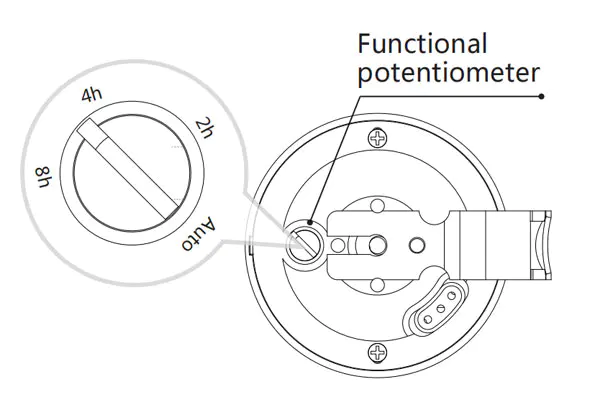

Knob adjustment
Time setting: 2h, 4h, 8h, Automatic switch.
When adjusting the knob clockwise, the delay time decreases, and when adjusting the knob counterclockwise, the delay time increases.
Time setting: 2h, 4h, 8h, Automatic switch.
When adjusting the knob clockwise, the delay time decreases, and when adjusting the knob counterclockwise, the delay time increases.
Connection-wire diagram
connect L and N with power;
connect L′ and N with load.
connect L and N with power;
connect L′ and N with load.

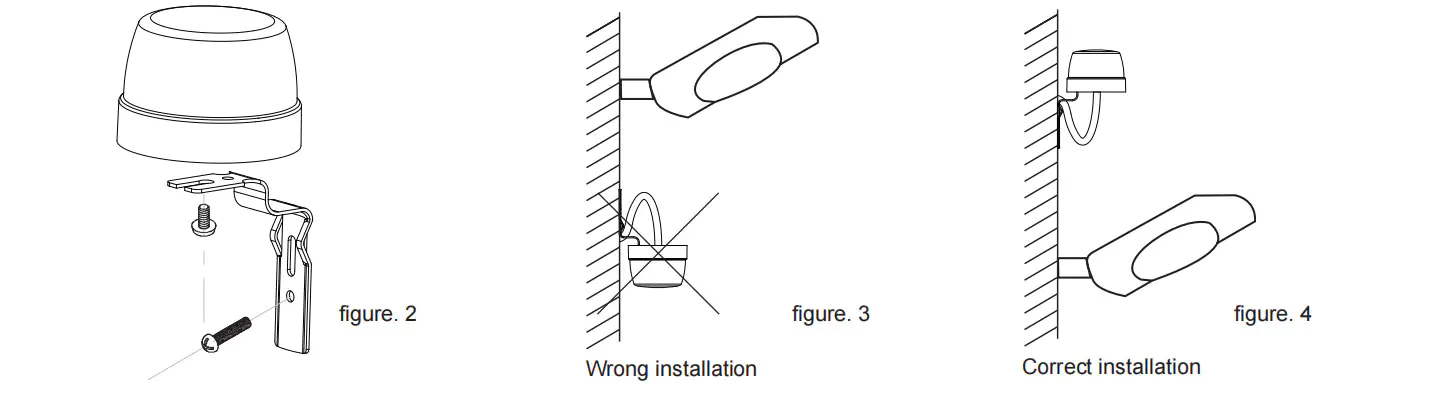

Installation
Notice
1.In front of the light-control switch there should be no block affecting it to receive natural light;
2.In front of the light-control switch there should be no swaying object;
3.Avoid installing the unit below light.

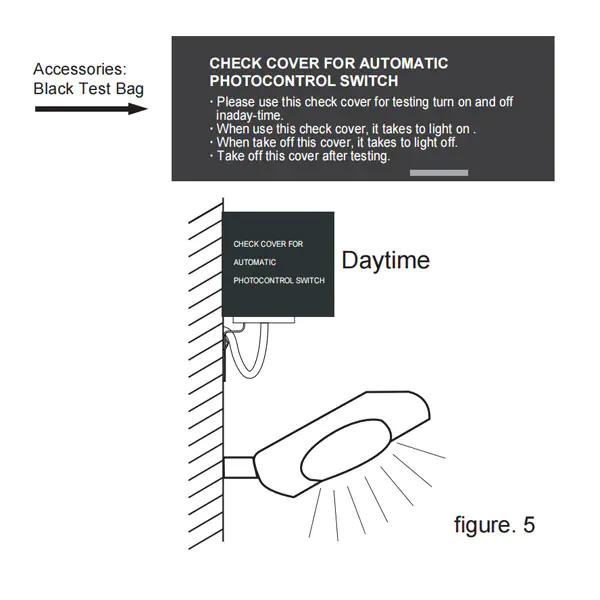

Attention
Please do not throw away the black test bag which is
used to test the product after installation！
Test
1.Use black test bag to cover the sense-light window when testing in the daytime.
2.When cover this black test bag, the load will be on.
3.When take off this black test bag, the load will be off.
4.Take off this black test bag after testing.
Please do not throw away the black test bag which is
used to test the product after installation！
Test
1.Use black test bag to cover the sense-light window when testing in the daytime.
2.When cover this black test bag, the load will be on.
3.When take off this black test bag, the load will be off.
4.Take off this black test bag after testing.
1.In front of the light-control switch there should be no block affecting it to receive natural light;
2.In front of the light-control switch there should be no swaying object;
3.Avoid installing the unit below light.
This manual is for the current content programming of this product, PDLUX PD-P08KT Outdoor Light Sensor Timer Switch are any changes and modifications to the manufacturer without notice!
This instruction, without our permission, should not be copied for any other purposes.
